Overall size: 2100*500*750/1000(mm)
Features:

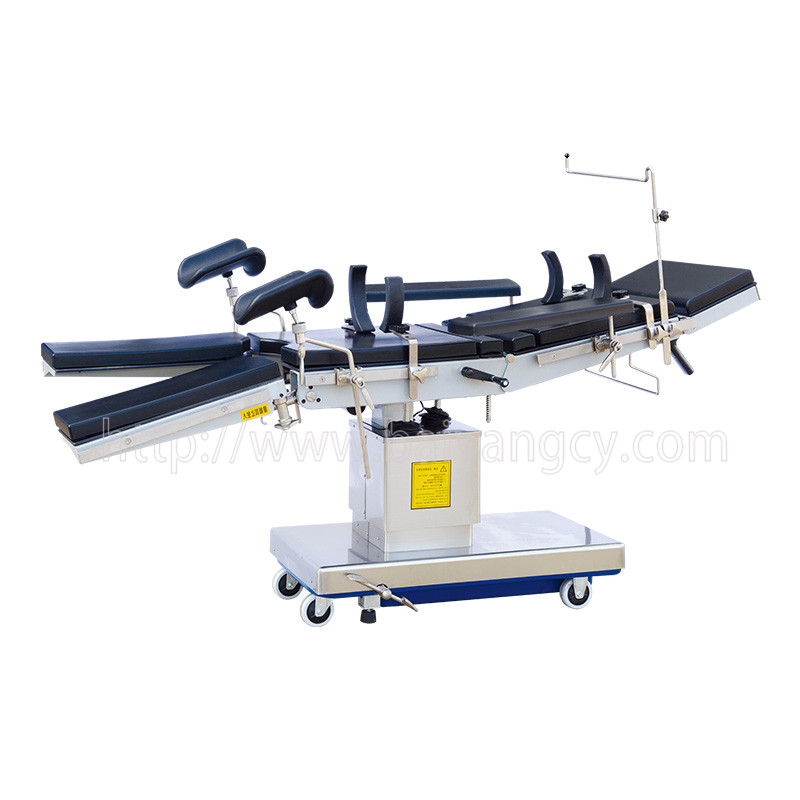

The Electric Operating Table uses 24 direct supply, is safe and reliable. The table’s elevation, lowering, reversed trendelenburg, trendlenburg, lateral tilt are all automatically controlled by motor.
1.Longitudinal sliding is up tp 400mm, C Arm compatible.
2. Head plate and foot plate can be removed, orthopedic traction frame, and head rack can be used for orthopedic surgery and neurosurgery.
3.Equipped with built-in emergency power supply, emergency power can be automatically recharged, the network power off when the emergency power can automatically jump to work status.
4.Back plate, leg plate turning adopts pneumatic spring.
Height Adjustment: (750~1000)±20mm
Tilt(Left) / Tilt(Right): 18°
Trendelenburg / Rev-Trend: 25°
Head board fold upward : 40°
Head board fold downward: 55°
Backboard Upwards: 25°
Backboard Downwards: 0-100°
Waist board lifting :0~100±10mm
